In the rapidly expanding market of Augmented Reality (AR), the Birdbath optical module has become one of the most popular choices for manufacturers aiming to balance image quality, form factor, and cost-effectiveness. Known for its distinct curved shape—resembling a garden birdbath—this optical engine is the heart of many leading consumer and enterprise AR smart glasses.

At ARVR Optical, we specialize in the high-precision manufacturing of these modules. Whether you are a newcomer to the industry or an expert engineer, understanding the physics and benefits of the Birdbath design is essential for developing successful wearable technology.

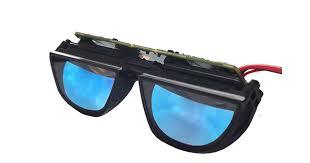

What is a Birdbath Optical Module?

The Birdbath optical module is a type of "combiner" optic. Its primary job is to take light from a micro-display (usually a Micro OLED) and reflect it into the user's eye while allowing them to see the physical world simultaneously.

The design typically consists of a 45-degree beam splitter and a curved semi-transparent mirror (the "combiner"). The light travels from the display, hits the beam splitter, reflects toward the curved mirror, and is then reflected back through the beam splitter into the eye. This "folding" of the light path allows for a high-quality image in a relatively compact space.

Why Industry Experts Choose Birdbath Designs

For buyers evaluating different AR engines—such as Waveguides or Free-form prisms—the Birdbath optical module offers several specific technical advantages:

• Superior Image Clarity: Unlike waveguides, which can suffer from "rainbow" artifacts or color shifts, Birdbath modules provide excellent color saturation and high contrast.

• Large Field of View (FOV): Birdbath designs easily achieve a FOV of 40° to 50°, providing an immersive experience for movie watching or complex data visualization.

• Cost-Efficiency: The manufacturing process for curved combiners is more mature and less expensive than the nano-imprinting required for diffraction waveguides.

• High Light Efficiency: Birdbath modules typically preserve more brightness from the micro-display, meaning they require less power to produce a vivid image.

Technical Performance Matrix

At ARVR Optical, we measure the success of our modules based on these core benchmarks:

Overcoming the Design Challenges

While the Birdbath optical module provides stunning visuals, it does present some engineering challenges that ARVR Optical is uniquely equipped to solve:

1. Form Factor and "Bird's Nest" Thickness

Because the light path is folded between a beam splitter and a curved mirror, the module has a certain physical thickness. We tackle this by using high-index plastic and glass substrates to thin the optics as much as possible without sacrificing the focal length.

2. Light Leakage

In some designs, people standing in front of the user can see what the user is watching (light leakage). ARVR Optical applies specialized anti-leakage coatings and polarization films to ensure that the light is directed only toward the wearer's eye, protecting privacy and reducing external "glow."

3. Optical Alignment

Precision is non-negotiable. If the micro-display and the curved mirror are misaligned by even a fraction of a millimeter, the image will appear blurry. Our robotic assembly lines use real-time MTF (Modulation Transfer Function) testing to ensure every module meets industrial-grade sharpness standards.

Applications in the B2B Sector

ARVR Optical provides Birdbath solutions across various professional fields:

• Remote Assistance: Industrial workers use Birdbath-based glasses to view high-resolution repair manuals and live video feeds from experts while keeping their hands free.

• Medical Visualization: Surgeons use these modules to overlay vitals and 3D imaging data during procedures, requiring the high color accuracy that only Birdbath tech can provide.

• Consumer Entertainment: The "Personal Cinema" market relies almost exclusively on Birdbath modules because they can simulate a 120-inch screen with perfect clarity and deep blacks.

Why Partner with ARVR Optical?

Choosing a supplier for your Birdbath optical module requires a partner who understands the integration of the display engine and the optical path. At ARVR Optical, we offer:

1. Integrated Micro OLED Support: We source and calibrate the micro-displays directly with the optics for maximum "plug-and-play" reliability.

2. Custom Coatings: Our in-house coating facility can apply high-durability, anti-smudge, and specific reflection-ratio coatings to meet your product's unique environmental needs.

3. Scalable Production: From 16 years of industry experience, we have developed the supply chain authority to move from rapid prototyping to high-volume manufacturing seamlessly.

Conclusion

The Birdbath optical module remains the most reliable and high-performance solution for creating an immersive, high-definition AR experience. Its ability to deliver vivid colors and a wide field of view at a competitive price point makes it the foundation of the current AR revolution.

By trusting ARVR Optical, you are choosing a partner dedicated to the technical precision required for near-eye optics. Whether you are building the next generation of smart glasses or a specialized industrial tool, our expertise ensures that your vision is clear, bright, and perfectly focused.

Visit arvroptical.com today to view our latest optical engine specifications or to consult with our technical team about your custom AR project.
